Description
17×8.5″ FN Wheels Overlander Spec B – complete set of four wheels with center caps and shipping within the contiguous 48 states
Please click here if you are looking for the 17×8.5″ FN Wheels Overlander Spec A wheels.
Diameter: 17″
Width: 8.5″
Offset: -6mm
Backspacing: 4.5″
PCD (bolt pattern): 6×139.7mm (6×5.5″)
Load rating: 955KG (2,100lbs+)
Weight: 29lbs (approximate)
Certification: JWL-T, VIA, SAE J-2530, DOT approved
Toyota specifics: 106.2mm hub centric for Toyota hubs, lug / stud openings drilled to accept extended thread (et) lug nuts, and the center cap is interchangeable with Toyota TRD OEM center cap PT280-35220-G0.
Colors Available:

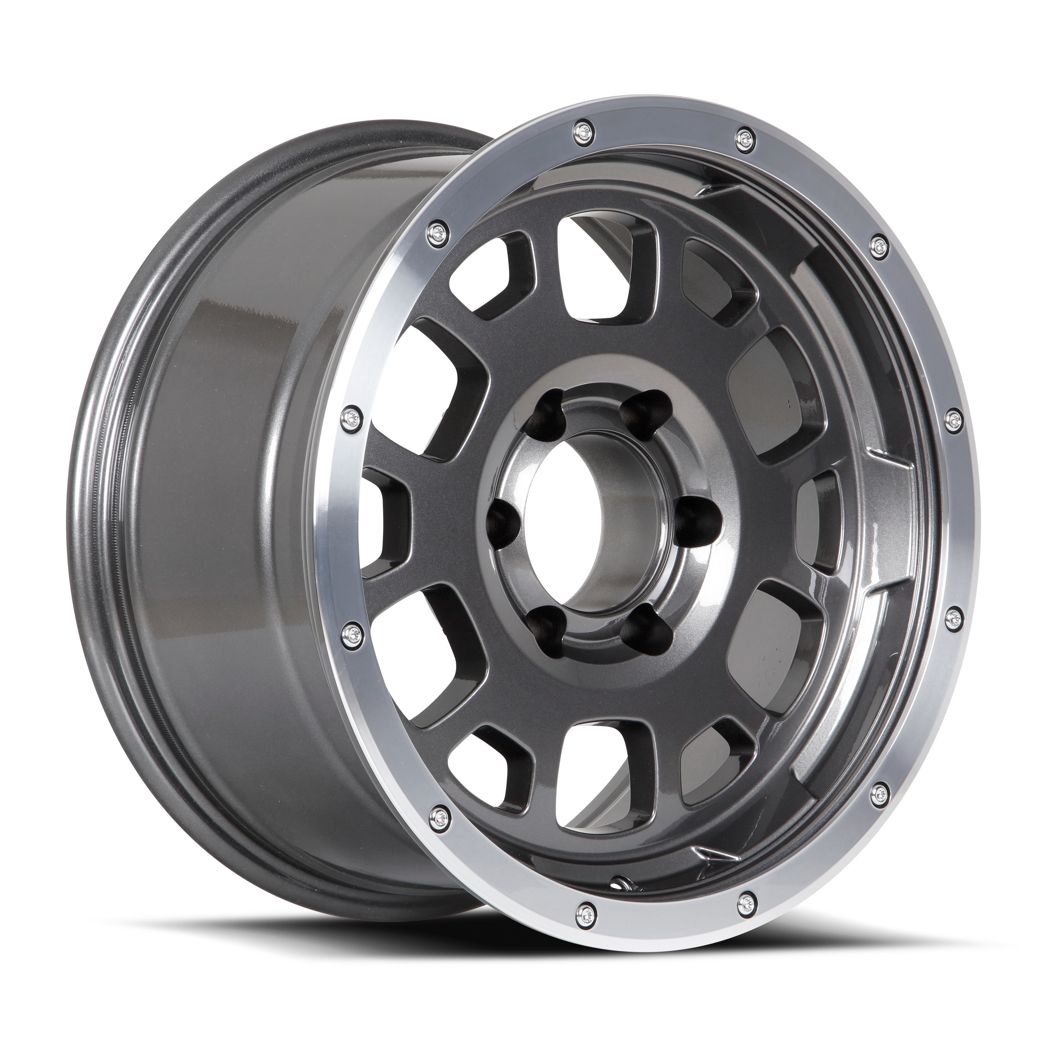

- Graphite gunmetal (high-gloss clear coat) w/ machined alloy simulated beadlock machining – Very limited stock on hand (single wheels only). Please contact us at (951)735-1100 or [email protected] to inquire about graphite gunmetal w/ machined alloy trim.

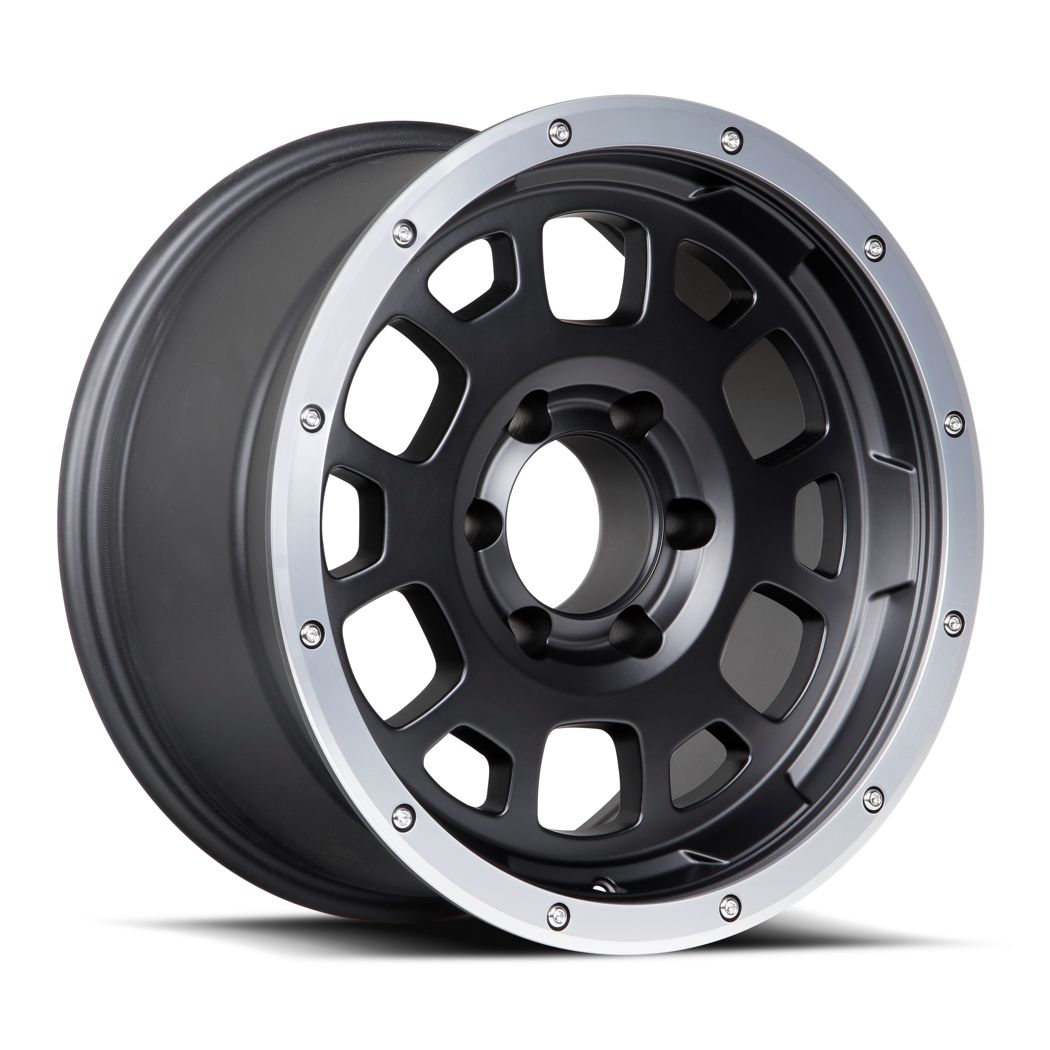

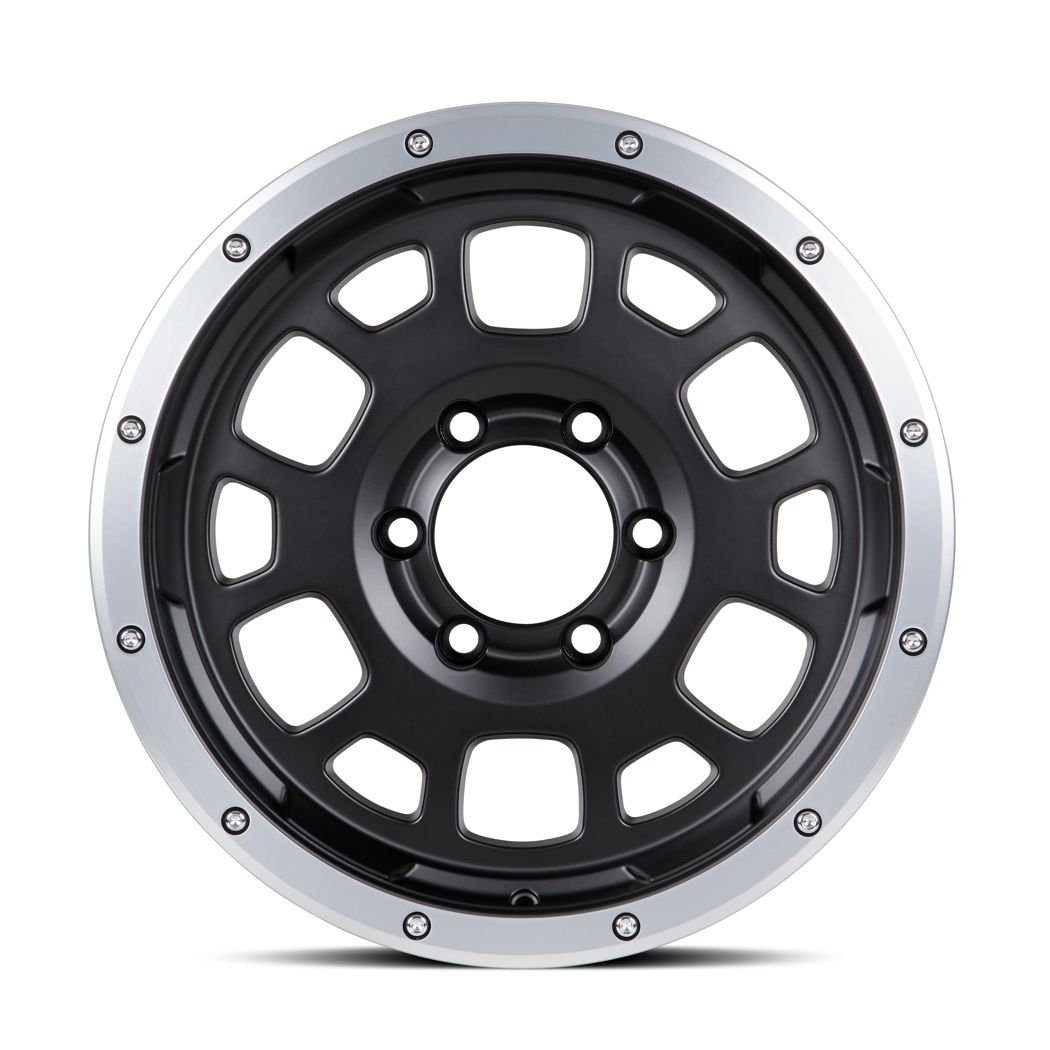

- Matte black w/ machined alloy simulated beadlock machining – Sold out. ETA pending. Please contact us at (951)735-1100 or [email protected] to inquire about matte black w/ machined trim.

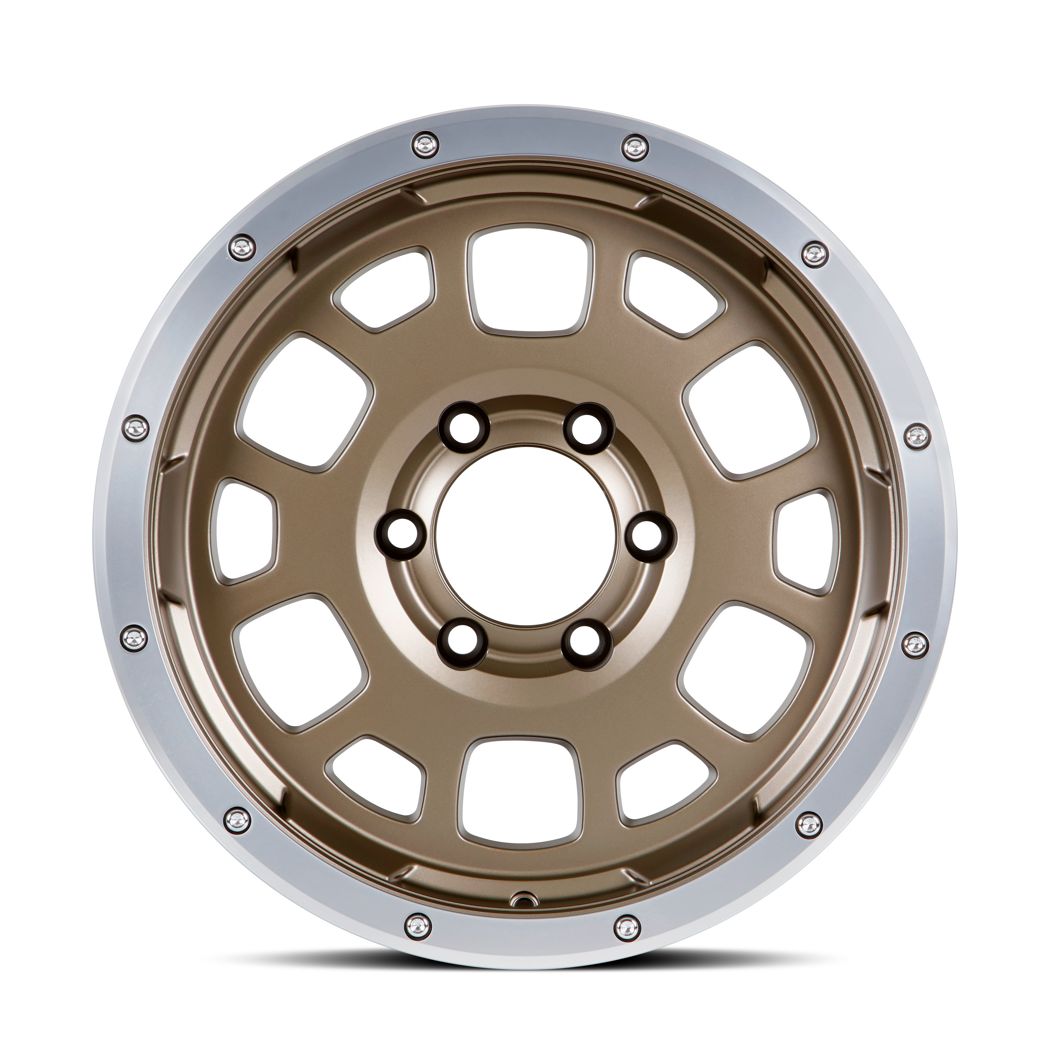

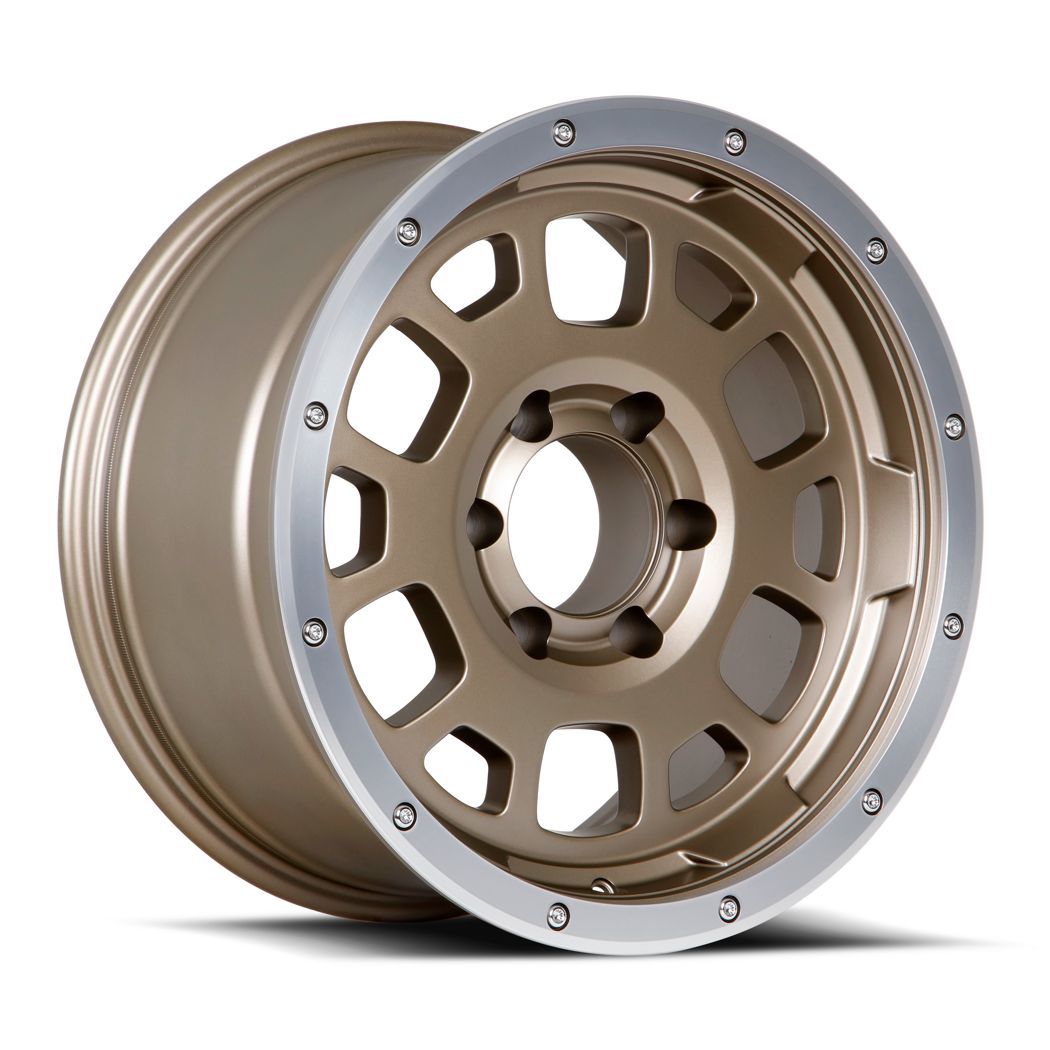

- Matte bronze w/ machined alloy simulated beadlock machining – Sold out. ETA pending. Please contact us at (951)735-1100 or [email protected] to inquire about matte bronze w/ machined trim.

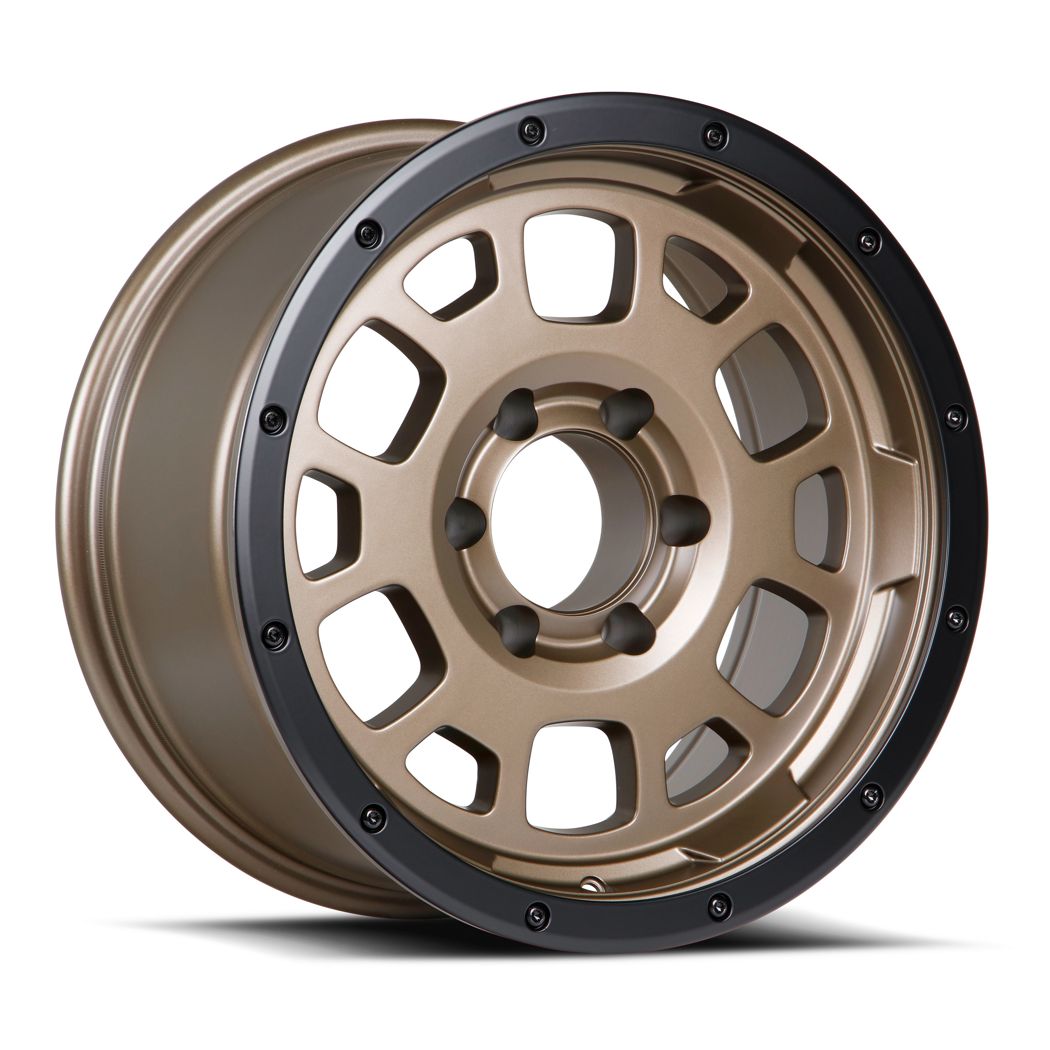

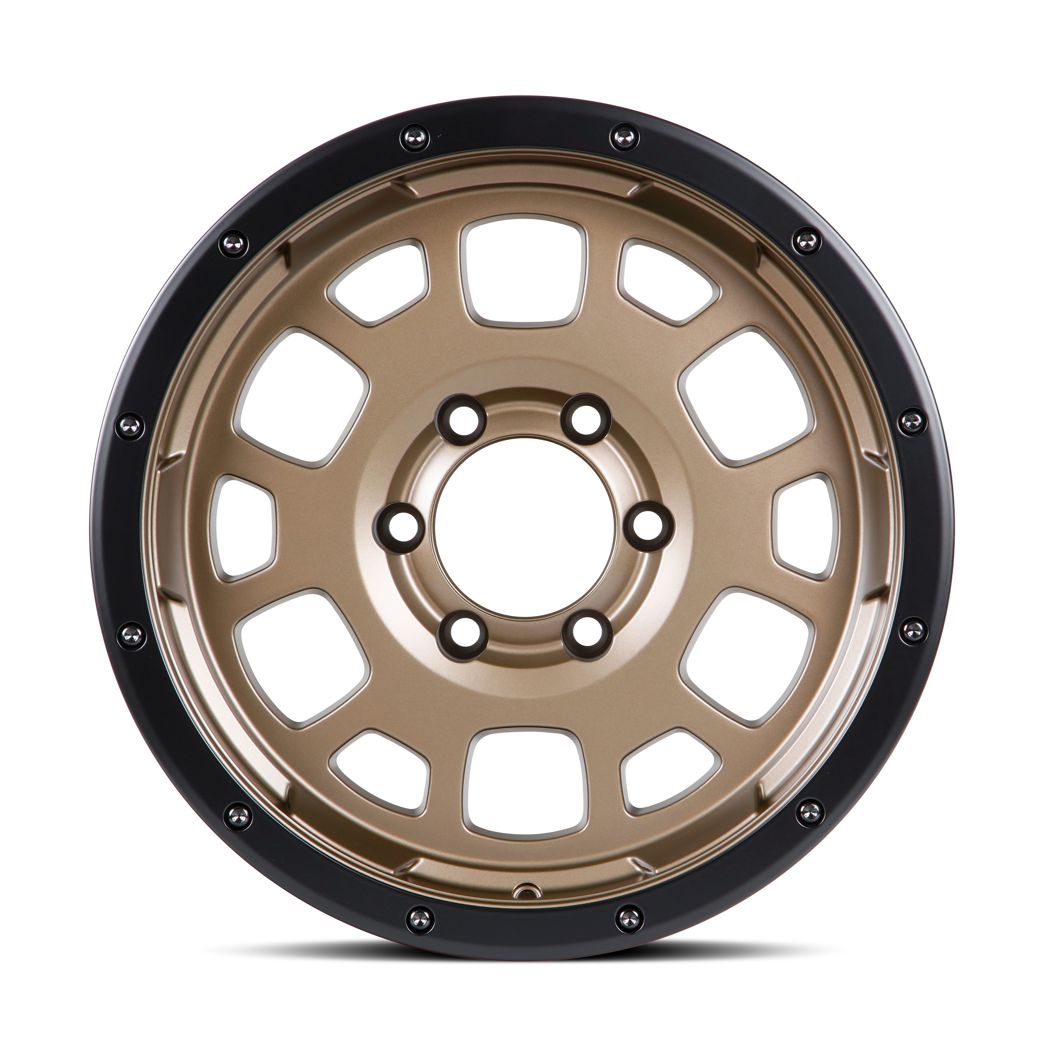

- Matte bronze w/ matte black simulated beadlock machining – Very limited stock on hand. Please contact us at (951)735-1100 or [email protected] to inquire about matte bronze w/ matte black trim.

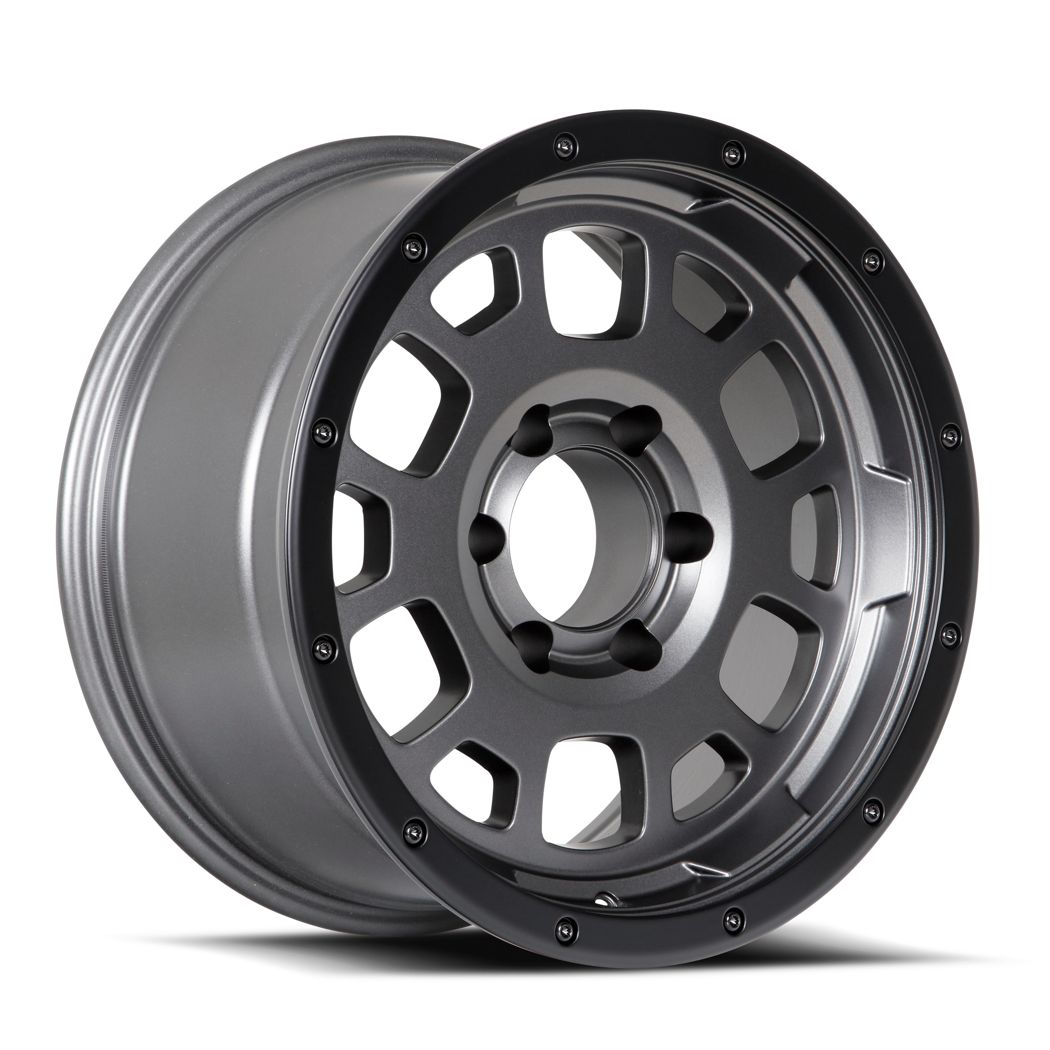

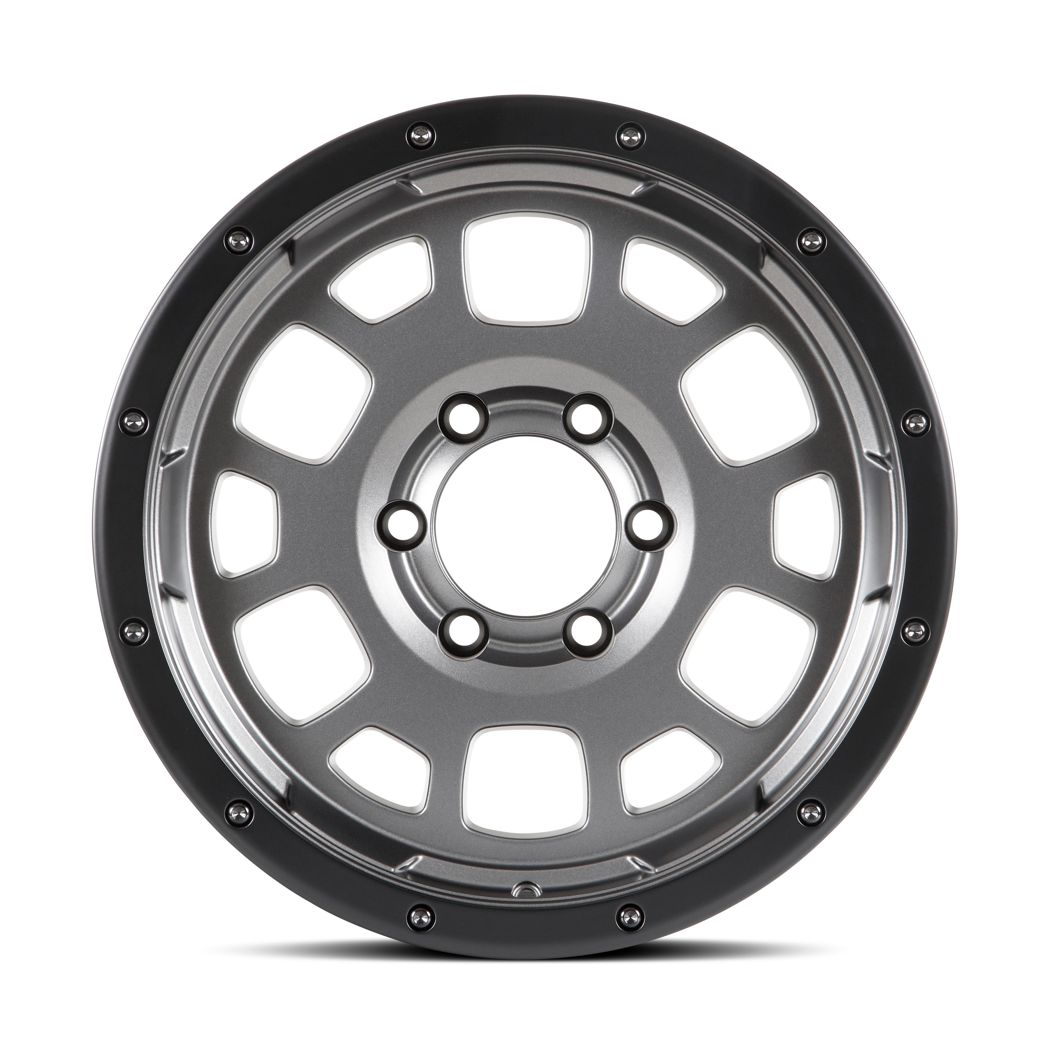

- Matte graphite gunmetal w/ matte black simulated beadlock machining – In-stock. Special clearance pricing (while supplies last). All sales final on clearance wheels.
Additional notes:
- All FN Wheels Overlander Spec B wheels produced from 2022 ~ present have knurled bead seats to enhance tire bead retention when the tire pressure has been lowered (i.e. during rock crawling, offroading, etc.).
- All FN Wheels Overlander Spec B wheels produced from 2022 ~ present have been manufactured to accept extended thread (ET) style, conical seat lug nuts (available separately here in black or chrome).
- Please contact us if you need a set of lug nuts for an older set of Overlander wheels and/or if you’re not sure when your wheels were manufactured.
- If your Toyota has manual locking hubs or full floating axles with tall hubs (i.e. older Landcruisers, T100s, early 4Runners, early Pickups, early Tacomas, etc.) please call us prior to ordering so that we can discuss fitment.
- The FN Wheels Overlander wheels fit virtually all modern Toyotas which came equipped with 6×139.7 bolt pattern and 106mm diameter hubs. The Overlanders are an excellent option for the 2003-2009 4Runner Limited / Sport, 2010-2023 4Runner (all models) and 2003-2023 Lexus GX460/GX470 owners who are looking for an OEM+ wheel design to fit over their larger brakes.
-PRICE INCLUDES A COMPLETE SET OF FOUR (4) WHEELS, FOUR (4) CENTER CAPS, AND SHIPPING VIA FEDEX OR UPS GROUND DELIVERY WITHIN THE CONTIGUOUS 48 US STATES. ALL WHEELS ARE PACKAGED EXTREMELY WELL WITH FOAM, CORRUGATED FACE PROTECTORS, ADDITIONAL EDGE PROTECTORS, DOUBLE BOXED AND THEN SHIPPED FULLY INSURED WITH SIGNATURE CONFIRMATION. WE DO NOT CUT CORNERS ON SHIPPING. WE BELIEVE THAT HIGH QUALITY WHEELS SHOULD BE SHIPPED IN A HIGH QUALITY MANNER.
-Please contact us prior to ordering if you require shipping outside of the contiguous 48 states, if you require a different shipping method (other than FedEx or UPS Ground delivery), or if you’re looking for a single wheel, set of five wheels, etc. We are always happy to help accommodate any requests, and we’re available to help by calling (951)735-1100 or emailing [email protected].
***If you’d like to order by phone or if you have any trouble ordering from our website please call us at: (951)735-1100 or e-mail [email protected].***
