17×9″ FN Wheels / Konig Countersteer Type X Flow Formed : 17×9″ -25mm 6×139.7 – Set of Four Wheels

$999.00

SKU: N/A Categories: ,

Description

Special introductory pricing thru December 31, 2024.

17×9″ FN Wheels / Konig Countersteer Type X Flow Formed – complete set of four wheels

Diameter: 17″
Width: 9″
Offset: -25mm
Backspacing: 4″
Bolt pattern (PCD): 6×139.7mm
Center bore: 106.2mm (Toyota hub centric)
Stud opening: 16.2mm diameter (accepts extended thread aka “ET” lug nuts for maximum stud engagement on short, OEM Toyota wheel studs)

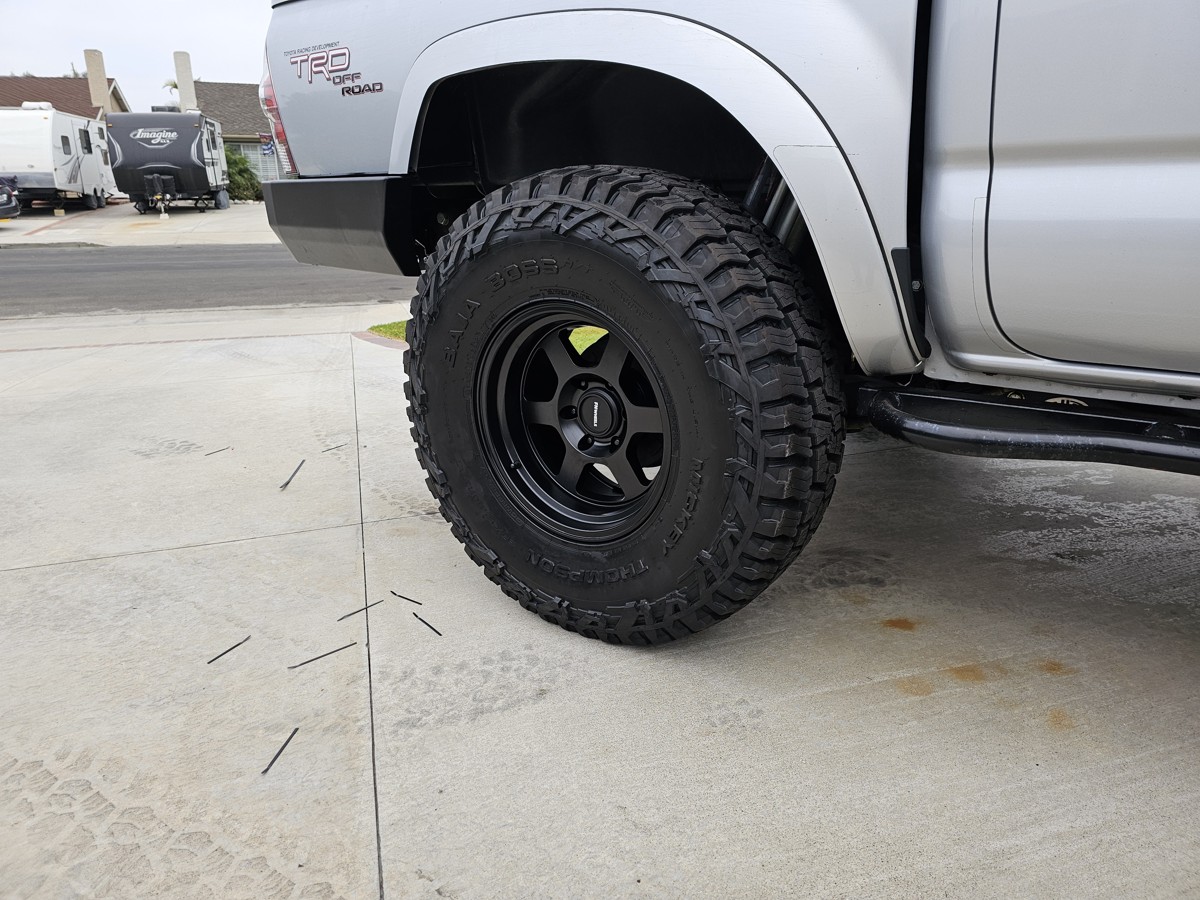

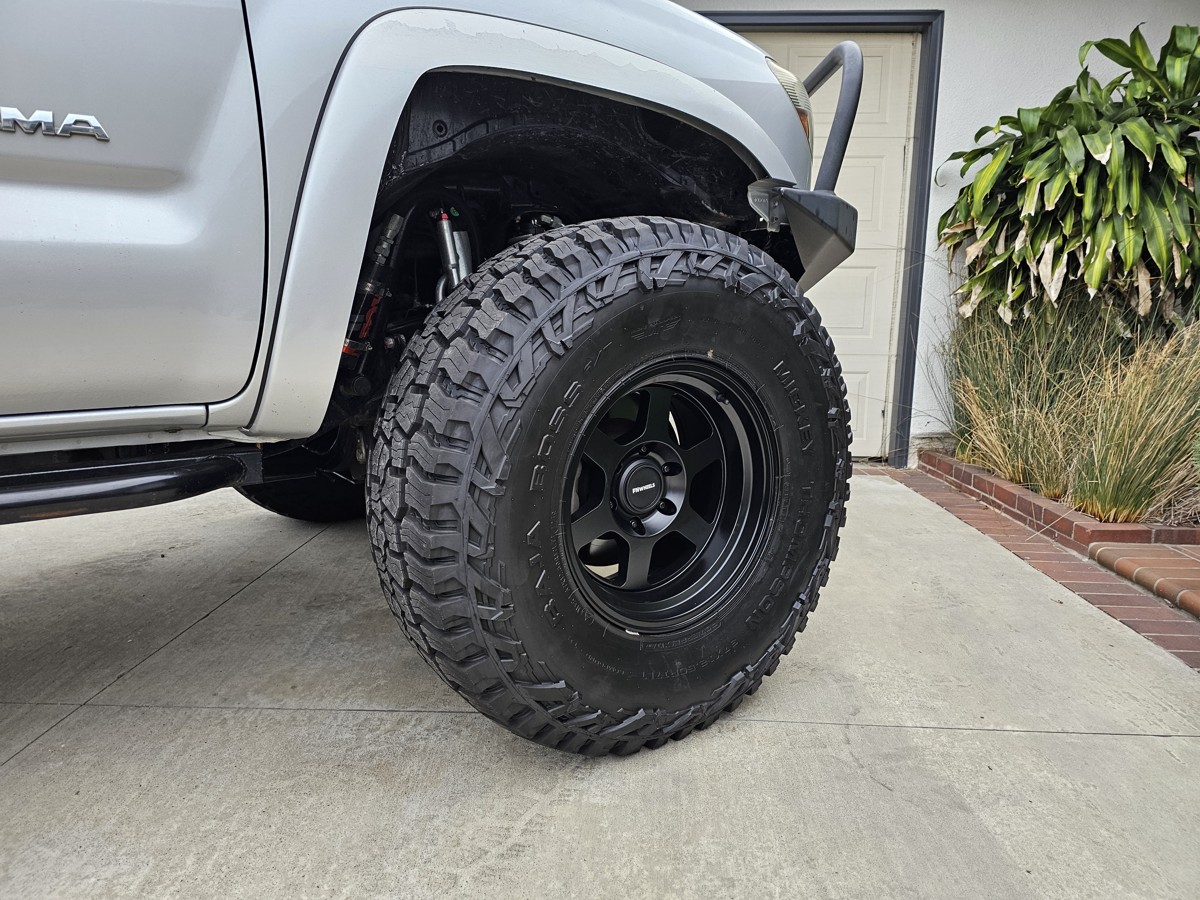

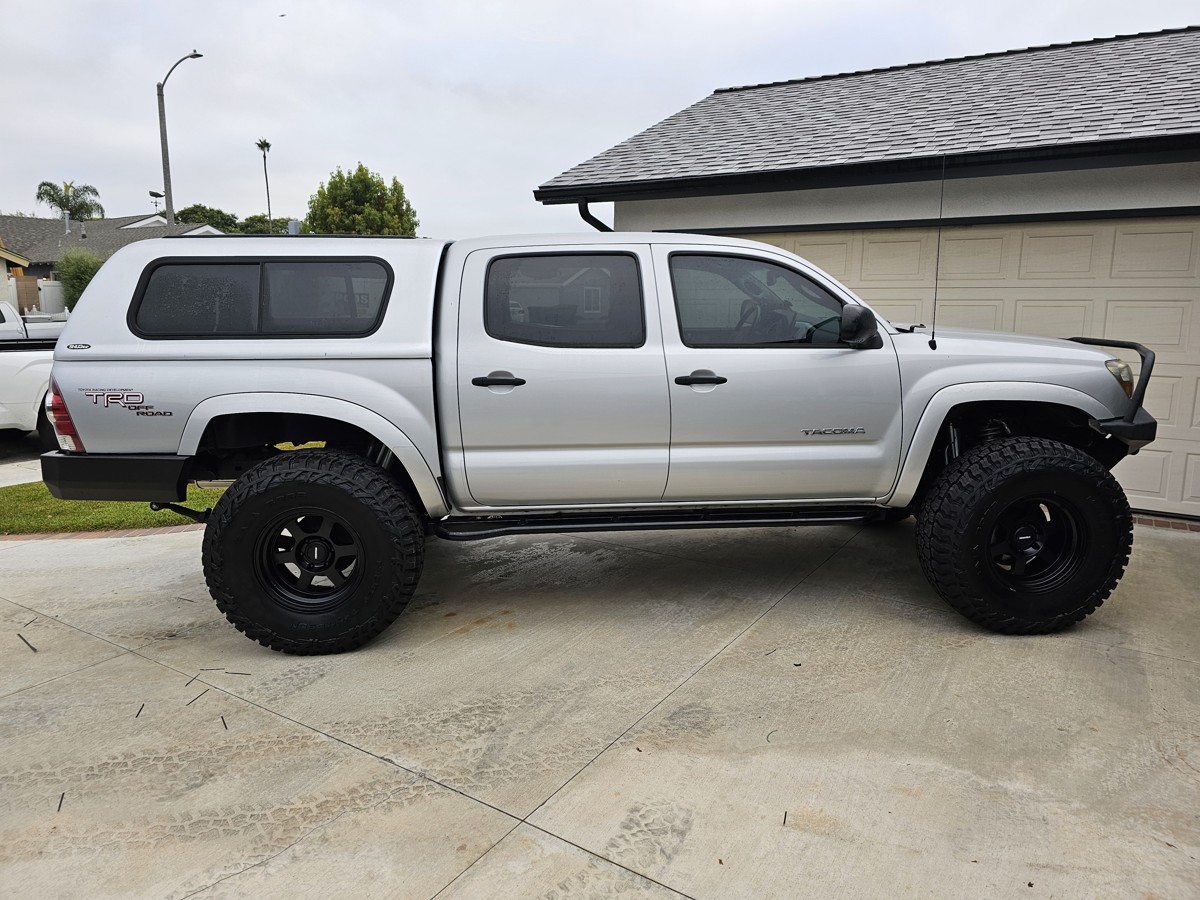

Load rating: 2,500lbs+ per wheel with up to a 37″ tire diameter
Wheel weight: 24lbs
Manufacturing details: Flow formed from high purity A356-T6 aluminum alloy.
Certification: DOT, JWL-T, VIA, and SAE J-2530 approved (SAE J-2530 is an extremely stringent, voluntary testing standard that is stricter than DOT, JWL-T, and other governmental testing standards).
Center cap: Included.

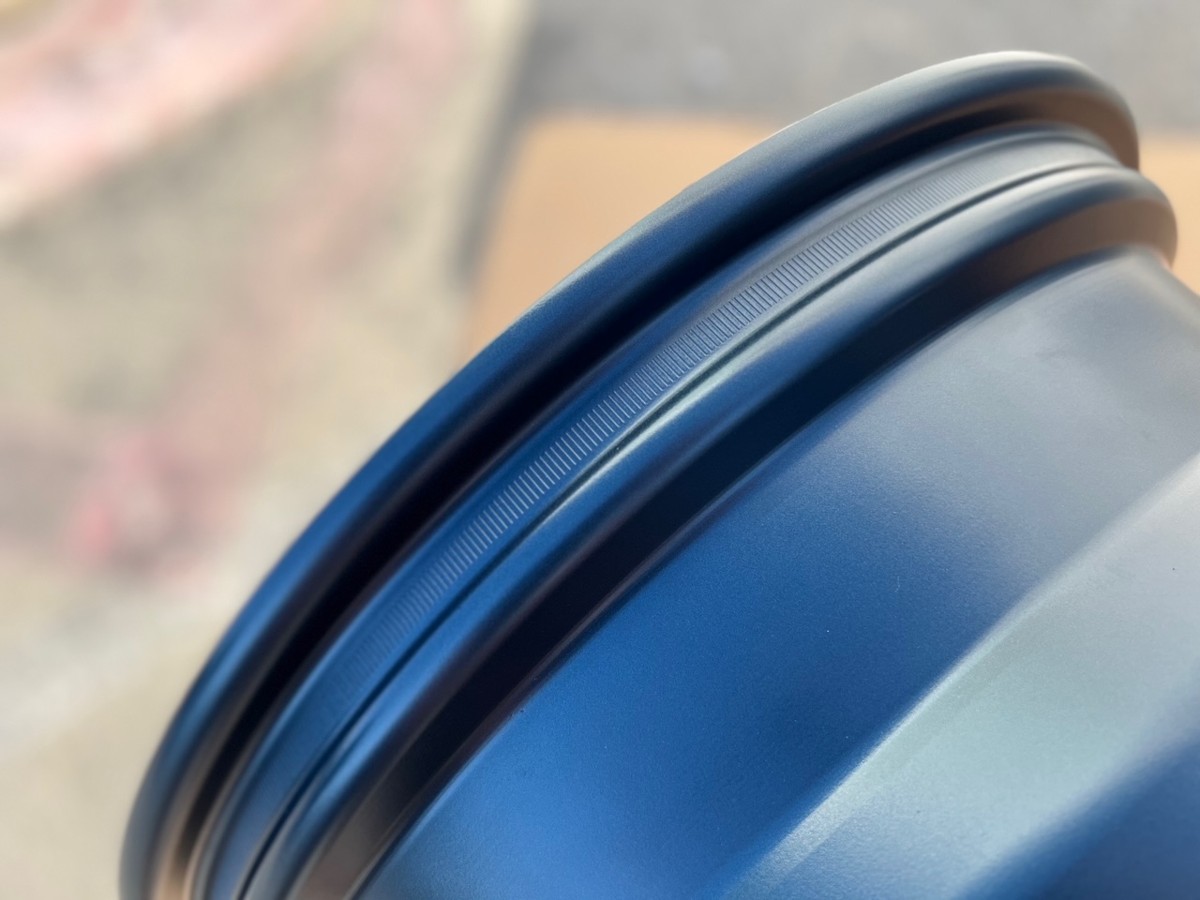

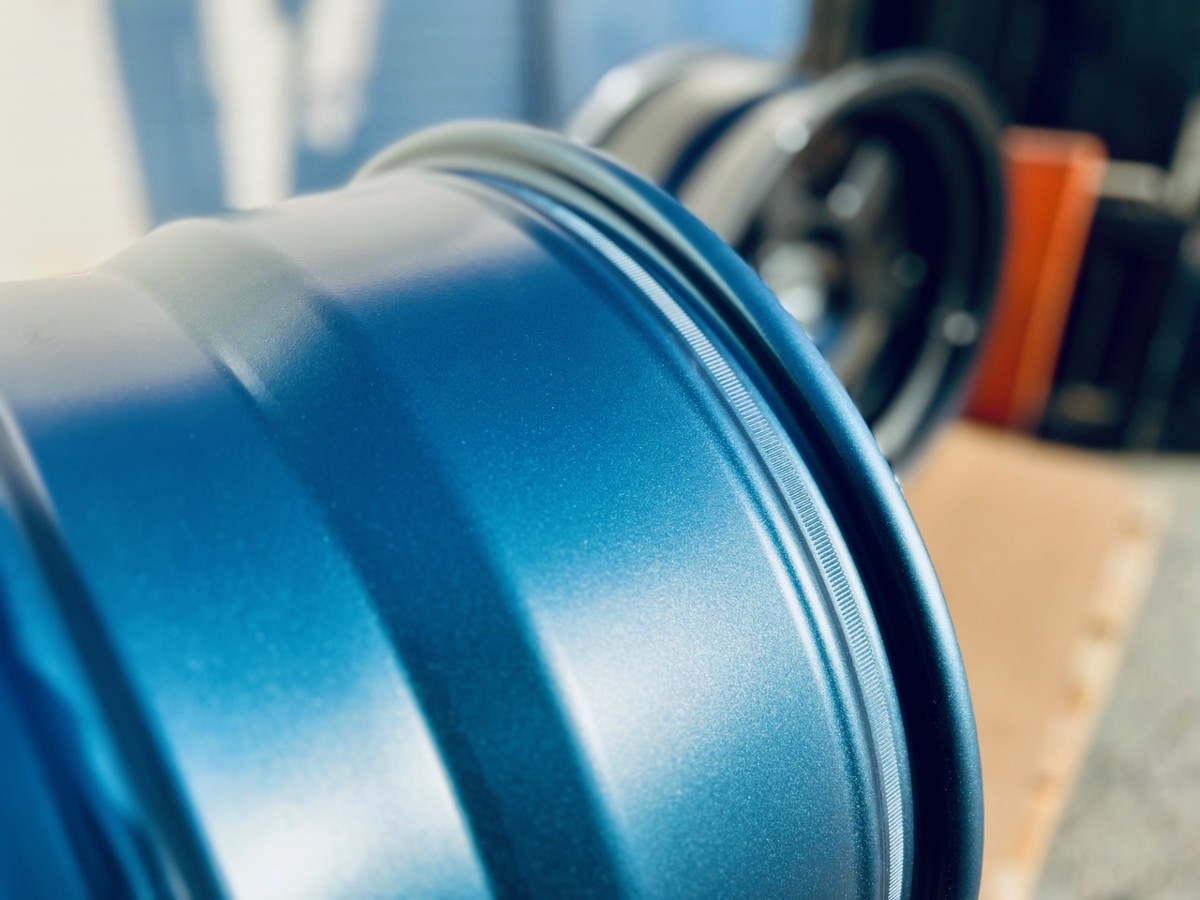

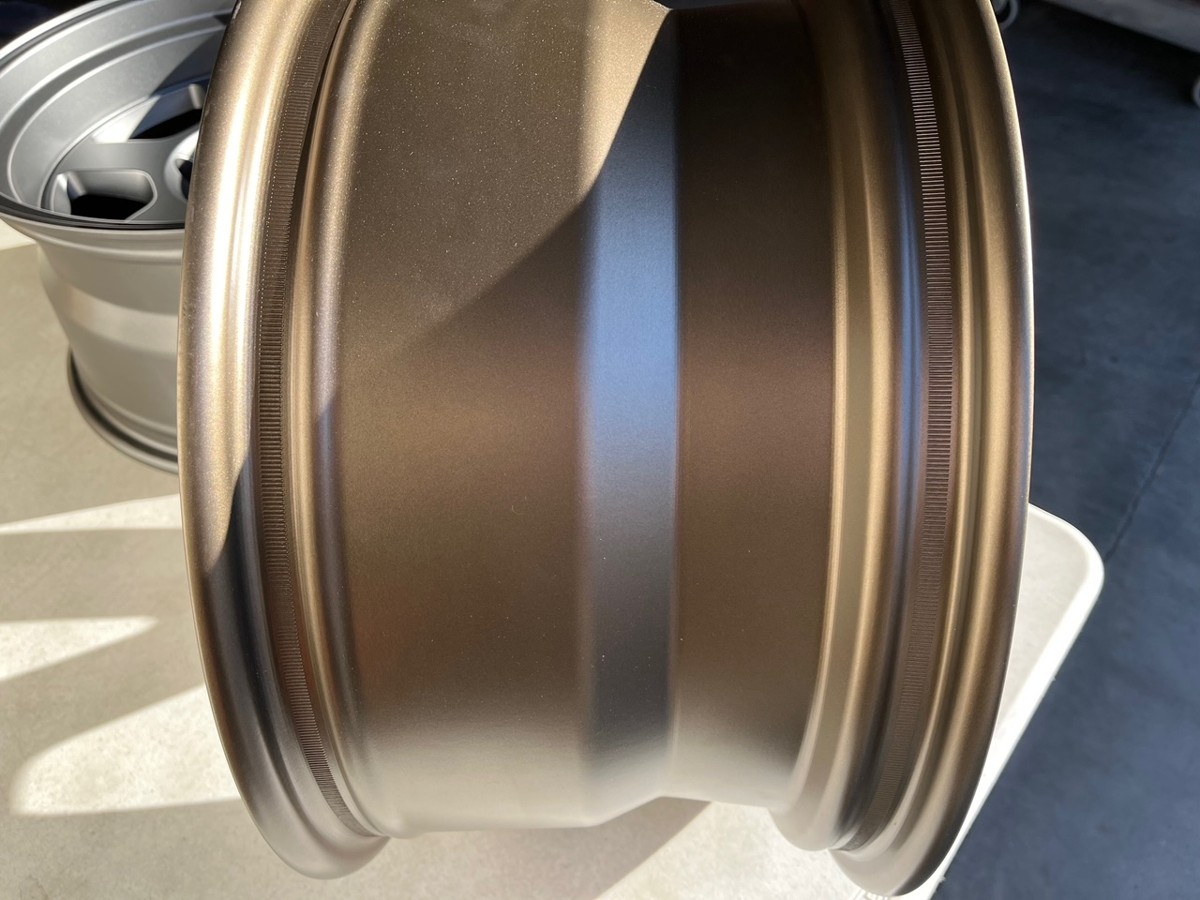

Additional features: Knurled bead seats for enhanced bead retention at low psi. Reinforced inner and outer lips/flanges for increased strength and rigidity. Special high strength / high clearance barrel design for maximum brake clearance.

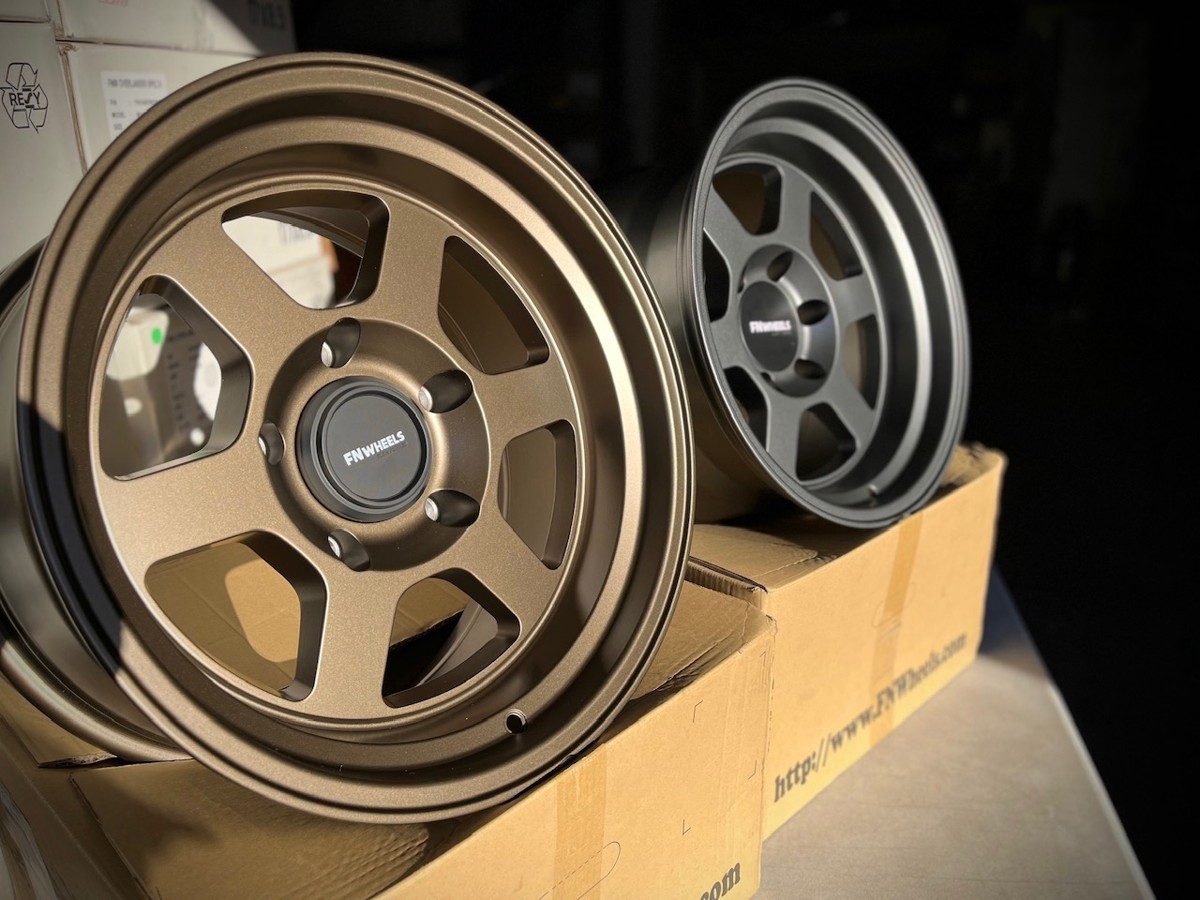

Colors Available:

  • Matte Black In-stock.
  • Matte Bronze – In-stock.
  • Matte Gunmetal – In-stock.

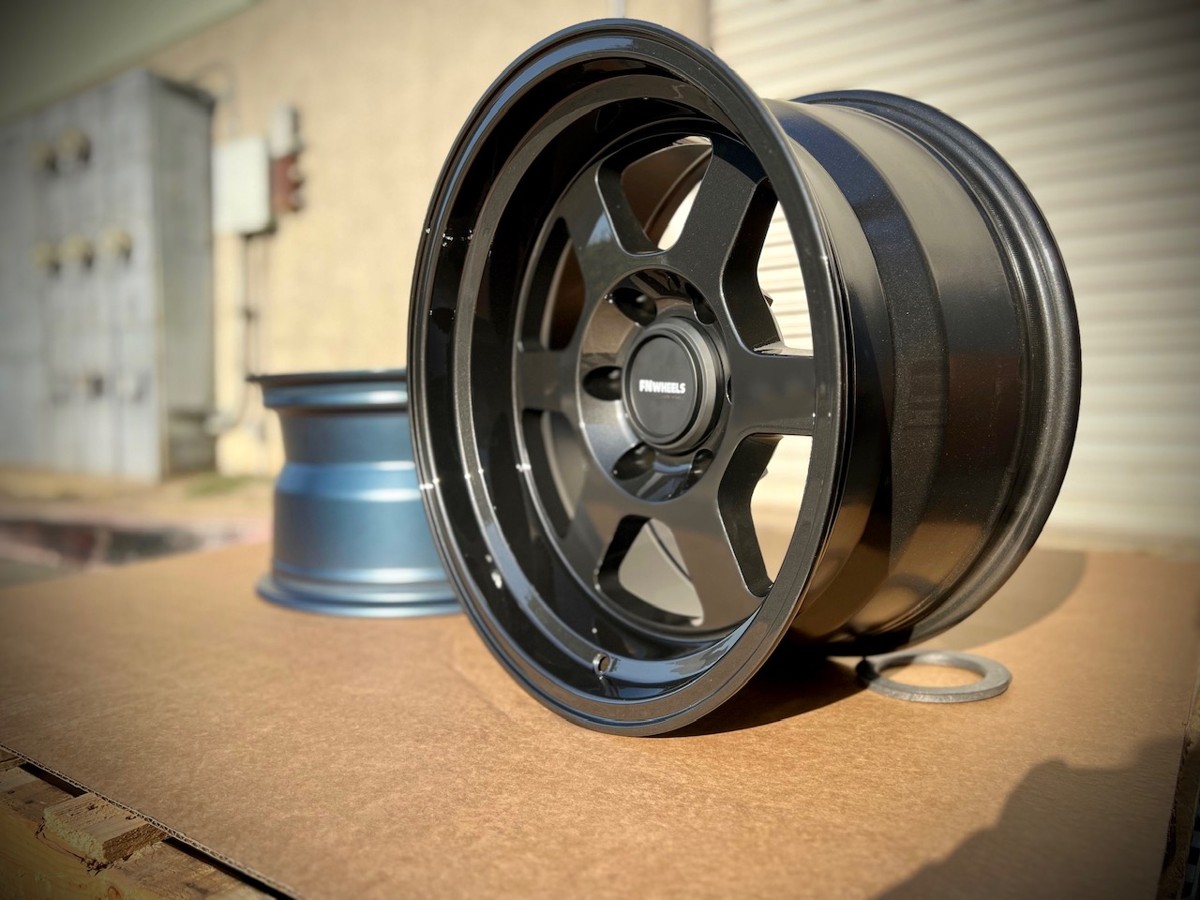

  • Graphite Gunmetal (High Gloss)Available approximately December 15, 2024. By placing your order now you are agreeing to pre-order these wheels at the special introductory price. Your order will ship between December 15 and December 22, 2024. Cancellation requests prior to December 27,  2024 will incur a 10% restocking fee.

Additional information:

  • The 17×9″ -25mm offset 6×139.7 FN Wheels / Konig Countersteer Type X flow formed wheels are an updated version of our popular 16×8″ / 17×8″ Countersteer Type X. This wheel is the result of customer feedback and requests for a wider, lower offset version of the Countersteer Type X that is able to support larger tires while providing more clearance for custom suspension setups. The negative offset and 9″ rim width provide an aggressive stance and plenty of suspension clearance with support for oversize widths and diameters.

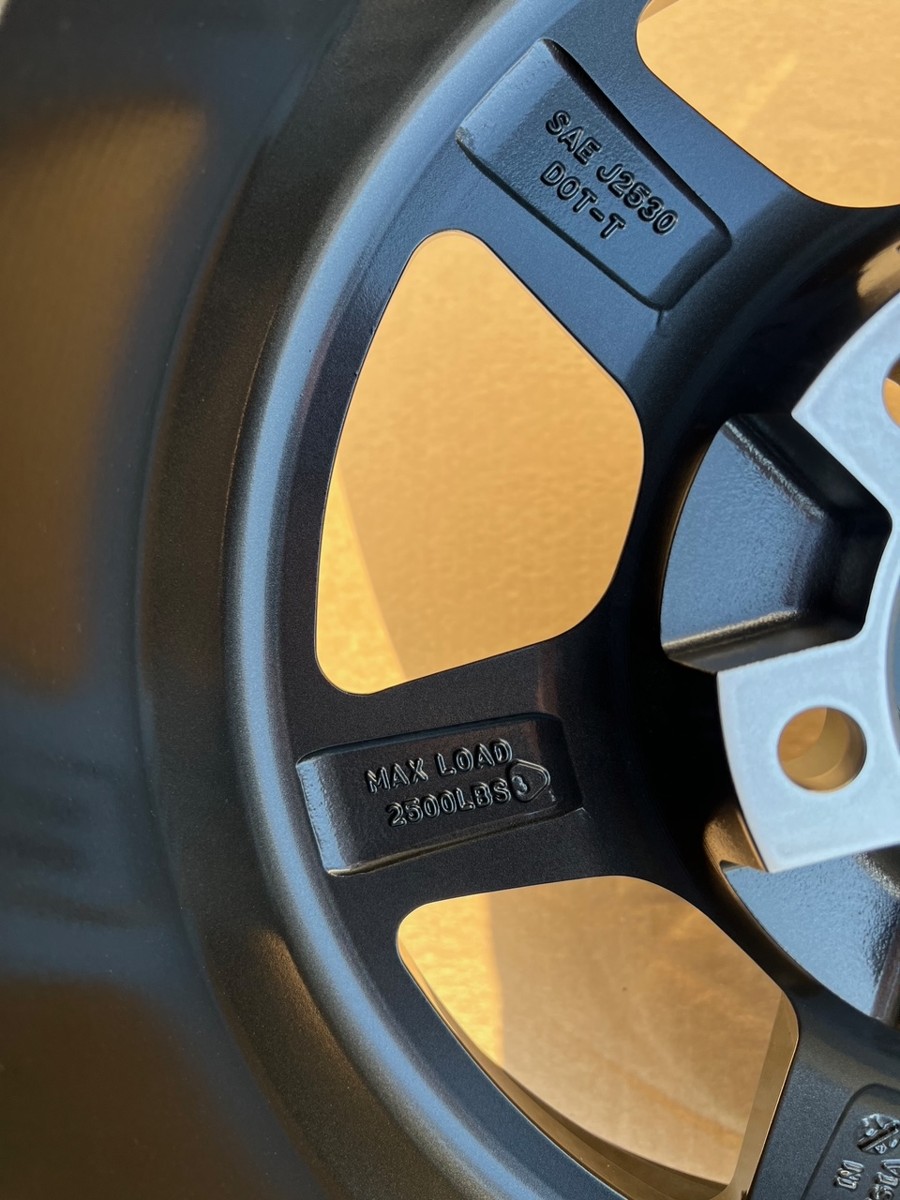

  • All 17×9″ -25mm offset Countersteer Type X flow formed wheels feature a heavy duty 2,500lbs+ (per wheel) load rating as tested to the stringent SAE J-2530 standard all the while maintaining a relatively light wheel weight of approximately 24lbs per wheel. This feat has been made possible through the use of high purity A356-T6 aluminum alloy, an advanced flow form manufacturing technique, extensive R&D including finite element analysis and physical testing.
  • 60°, conical taper lug nuts are required for installation. Extended thread (ET) lug nuts are highly recommended for all Toyota applications. Black or chrome lug nuts are available via our website or when ordering by phone.
  • This is an aggressive fitment for most applications. Please feel free to confirm fitment with us prior to ordering. If you have a vehicle with full float axles and/or manual locking hubs (i.e. early 4Runners, early Tacomas, older Landcruisers, older pick ups, etc.) please contact us prior to ordering so that we can discuss your center bore and center cap options.

-PRICE INCLUDES A COMPLETE SET OF FOUR (4) WHEELS AND SHIPPING VIA FEDEX OR UPS GROUND DELIVERY WITHIN THE CONTIGUOUS 48 US STATES. ALL WHEELS ARE PACKAGED EXTREMELY WELL WITH FOAM, CORRUGATED FACE PROTECTORS, ADDITIONAL EDGE PROTECTORS, DOUBLE BOXED AND THEN SHIPPED FULLY INSURED WITH SIGNATURE CONFIRMATION. WE DO NOT CUT CORNERS ON SHIPPING. WE BELIEVE THAT HIGH QUALITY WHEELS SHOULD BE SHIPPED IN A HIGH QUALITY MANNER.

-Please contact us prior to ordering if you require shipping outside of the contiguous 48 states, if you require a different shipping method (other than FedEx or UPS Ground delivery), or if you’re looking for a single wheel, set of five wheels, etc. If you’d like to order by phone or if you have any trouble ordering from our website please contact us. We are always happy to help accommodate any requests, and we’re available to help by calling (951)735-1100 or emailing [email protected].

-Sales tax is only applicable to California residents. Tax will be shown for all customers, but it will only be applied to California orders.

Any images depicting tires and/or vehicles are shown for illustration purposes. Purchase price includes one set of four (4) wheels with one (1) center cap per wheel, and shipping anywhere in the contiguous 48 states only (no tires or lug nuts).
