Description

17″ Konig Countersteer Type X – complete set of four wheels

Diameter: 17″
Width: 8″
Offset: -10mm
Backspacing: 4.1″
Bolt pattern (PCD): 6×139.7mm
Center bore: 106.2mm (Toyota hub centric)
Load rating : 955kg (2,100lbs+ per wheel)
Wheel weight : 20.9lbs (approximate)
Certification: JWL-T, VIA, DOT approved
Center cap: Plain, color matched cap included.

Colors Available:

• • Gunmetal : In-stock
    • We have a limited amount of “cosmetic seconds” in stock at a discount priced. See below for more information.*

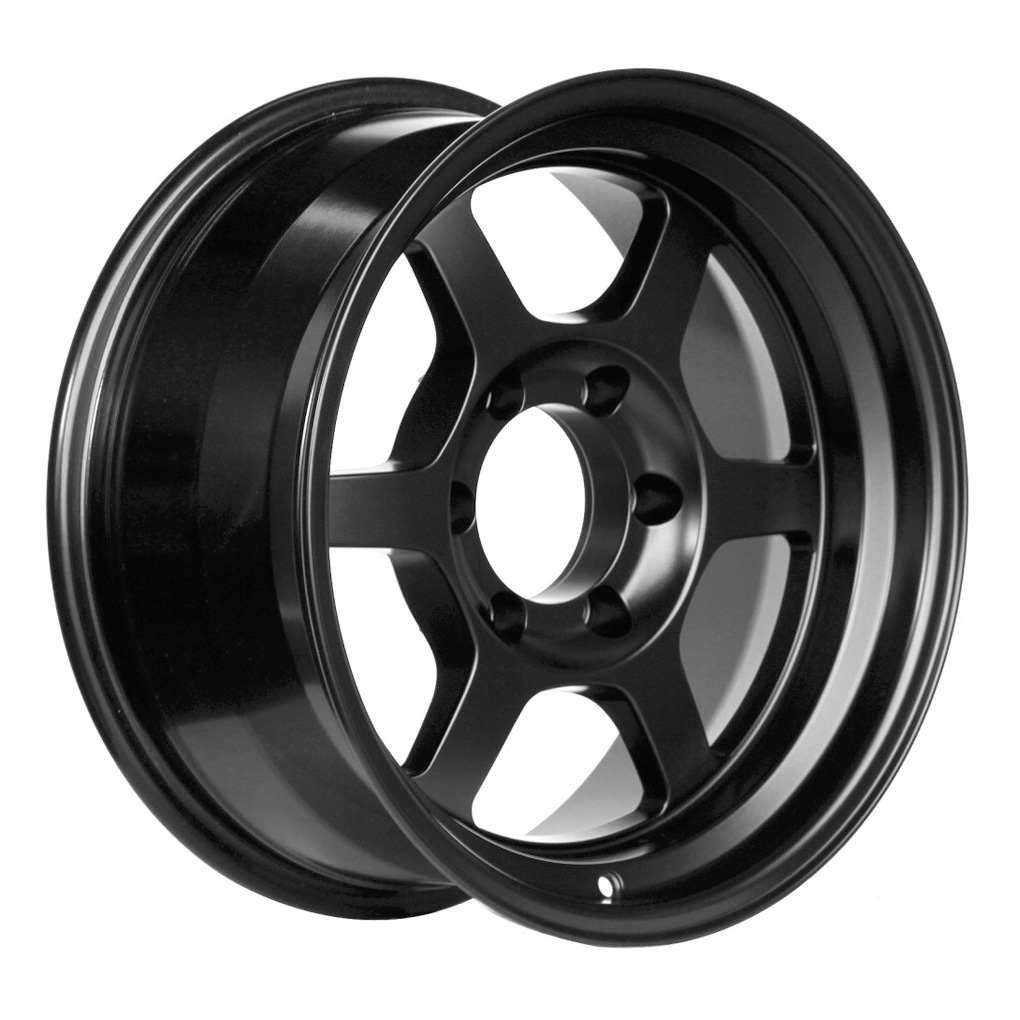

  • Matte Black : In-stock

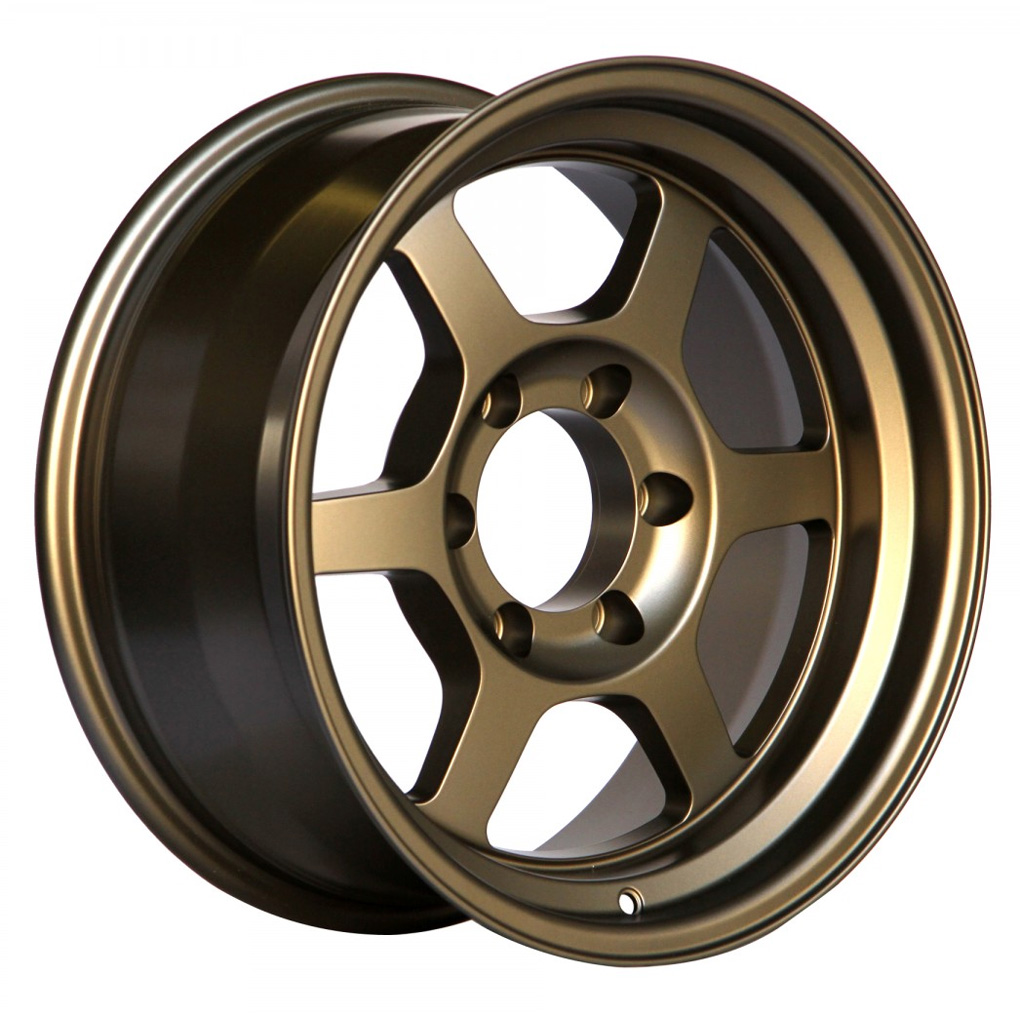

  • Matte Bronze : In-stock

  • Dark Metallic Blue – Sold out. ETA pending for dark metallic blue.

The 17″ Konig Countersteer Type X is currently manufactured specifically for late-model (late-1990’s ~ present) Toyota trucks (2WD or 4WD). If you have a truck other than a late-model Toyota (including non-Toyota trucks or earlier model Toyota trucks with manual locking hubs, full floating axles, custom axles, etc.), or if you’re just not sure if our wheels will fit your truck, please contact us prior to ordering : (951)735-1100 or FNWheels@gmail.com. We more than likely have Countersteer Type X wheels for your truck, but they may require custom machining of the center bore to fit over your hubs.

As of late 2020 : Extended thread (ET), conical seat lug nuts are now required to install the 17″ Konig Countersteer Type X wheels on all Toyota trucks. The ET lug nuts are available for purchase on our website or by calling us at (951)735-1100. 17″ Konig Countersteer Type X wheels that were produced earlier than June 2020 require regular conical seat lug nuts. If you need replacement lug nuts for your Countersteer Type X wheels and are unsure which version you have please call us. We can help you determine which lug nuts you need.

-PRICE INCLUDES A COMPLETE SET OF FOUR (4) WHEELS AND SHIPPING VIA FEDEX GROUND/HOME DELIVERY WITHIN THE CONTIGUOUS 48 US STATES. ALL WHEELS ARE PACKAGED EXTREMELY WELL WITH FOAM, CORRUGATED FACE PROTECTORS, ADDITIONAL EDGE PROTECTORS, DOUBLE BOXED AND THEN SHIPPED FULLY INSURED WITH SIGNATURE CONFIRMATION. WE DO NOT CUT CORNERS ON SHIPPING. WE BELIEVE THAT HIGH QUALITY WHEELS SHOULD BE SHIPPED IN A HIGH QUALITY MANNER.

-Please contact us prior to ordering if you require shipping outside of the contiguous 48 states, if you require a different shipping method (other than FedEx Ground/Home delivery), or if you’re looking for a single wheel, set of five wheels, etc. If you’d like to order by phone or if you have any trouble ordering from our website please contact us. We are always happy to help accommodate any requests, and we’re available to help by calling (951)735-1100 or emailing FNWheels@gmail.com.

-Sales tax is only applicable to California residents. Tax will be shown for all customers, but it will only be applied to California orders.

*Cosmetic seconds: These are 100% brand new, structurally perfect wheels with minor cosmetic flaws / superficial flaws in the finish. These wheels would likely be considered first quality by industry/competitor standards, but by our strict standards we consider them to be seconds due to the small imperfections/flaws in the finish. The finish is mostly flawless except for a few small imperfections, so if you have a truck that is a few years old and/or if you’re planning to use the wheels for offroading, these Countersteer Type X wheels would be an excellent choice that will save you money. Structurally there is nothing wrong with the wheels, and the wheels do not have any dents, bends, gouges or paint adhesion issues.
